SPECIFICATIONS

Accessory Type: Power Supply,Driver,Mounting Bracket,Pulsed Current Source,Breakout Board

Application: Laser cutting/engraving/marking machines,Medical equipment, etc

Brand: ODM Customized Service

Certificate: CE/RoHS/REACH/FCC/ISO9001

Cooling Type: Water-cooled

Diameter: 80mm+/-2mm

Laser type: Sealed CO2 Laser Tube

Length: 605mm

Lifespan: Industry-leading

Product name: Co2 Laser Tube

Size: Customized Size

Wavelength: other

brand name: Yongli

condition: New

key selling points: Long Service Life/Competitive Price/Low Maintenance Cost/High-accuracy

place of origin: Jilin, China

spare parts type: CO2 Laser Tube,Laser Tube,Laser Equipment Parts

warranty: 6~18 Months

weight (kg): 5

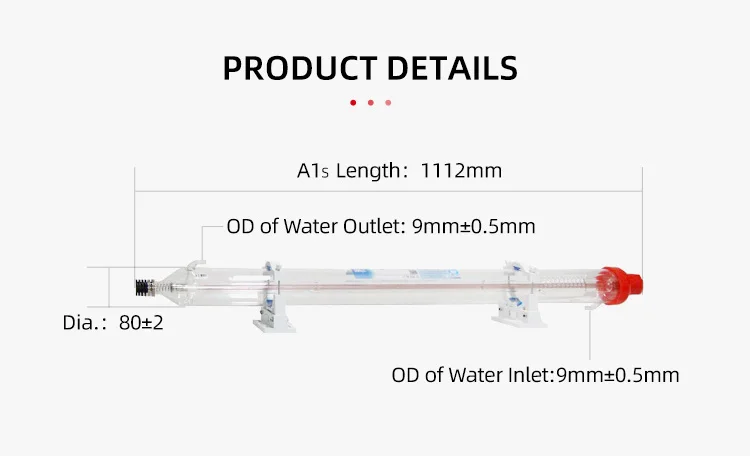

Product Details

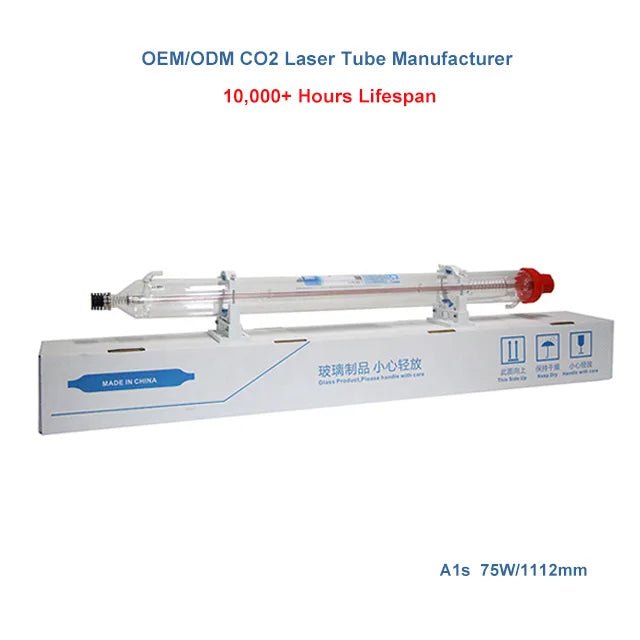

Yongli 75W 1112nm CO2 Laser Tube Galvo Head New Condition for Laser Marking & Cutting Equipment Parts

Introduction

The As Series laser tubes incorporate advanced metal heat sinks and heat disspation head designs, coupled with metal catalytic reduction technology. These features ensure an high quality beam mode, exceptional stability, and extended service life, making them highly effective for both cutting and engraving tasks. Notably, the A6s and A8s models deliver outstanding cutting performance on both metal and non-metal sheets, offering superior results across various applications. co2 laser tube price

Features:

1. Metal Sealed structure, water cooled. 2. The best life time ratings of up to 12,000 hours. 3. Warranty 6-18 months 4. Original patented manufacturing process 5. Equipped with top-quality American II-VI lens 6. Safer and faster replacement, full metal cathode and anode terminal connections.

Technical Parameters

Model	A0s	A1s	A2s	A4s	A6s	A8s
Rated Power(W)	28	78	90	100	130	150
Max. Power(W)	35	90	100	130	160	180
Ignition Voltage (kV)	12	20	23	26	30	32
Max Working Current(mA)	20	22	26	28	30	35
Recommend Working Current(mA)	16	18	21	22	24	28
Power Instability(%)	≤5	≤5	≤5	≤5	≤5	≤5
Length(mm)	605	1112	1262	1462	1662	1862
Dia.(mm)	80±2	80±2	80±2	80±2	80±2	80±2
Angles Between Water Inlet&outlet	180°	180°	180°	180°	180°	180°
Warranty(M)	6	10	18	18	12	12
Application	Cutting/Engraving					Cutting

Yongli CO2 Tubes: Where Precision Meets Power

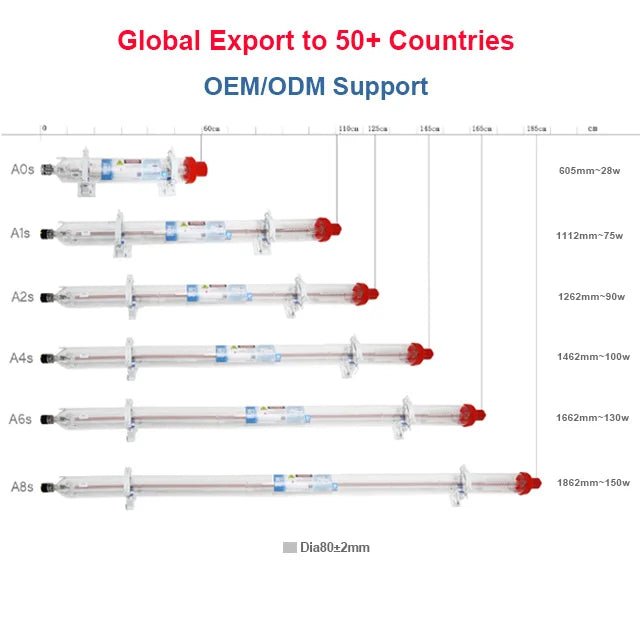

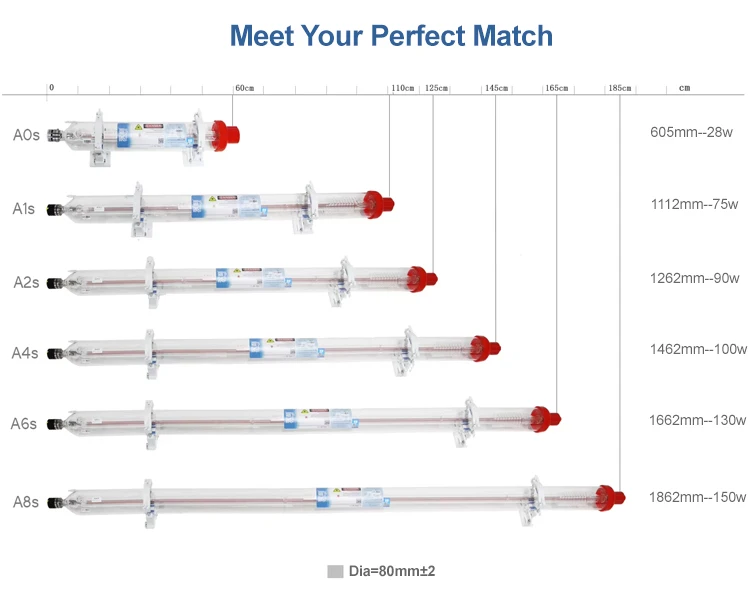

5+ Models (A0s/A1s/A2s/A4s/A6s/A8s) – Adapt to any laser machine brand. Φ80mm±2 Standard Diameter – Stable energy output for thick material cutting. Extra-long lifespan Lifespan – Save 30% on maintenance costs. Need a specific model? Click to check stock and get a sample!"

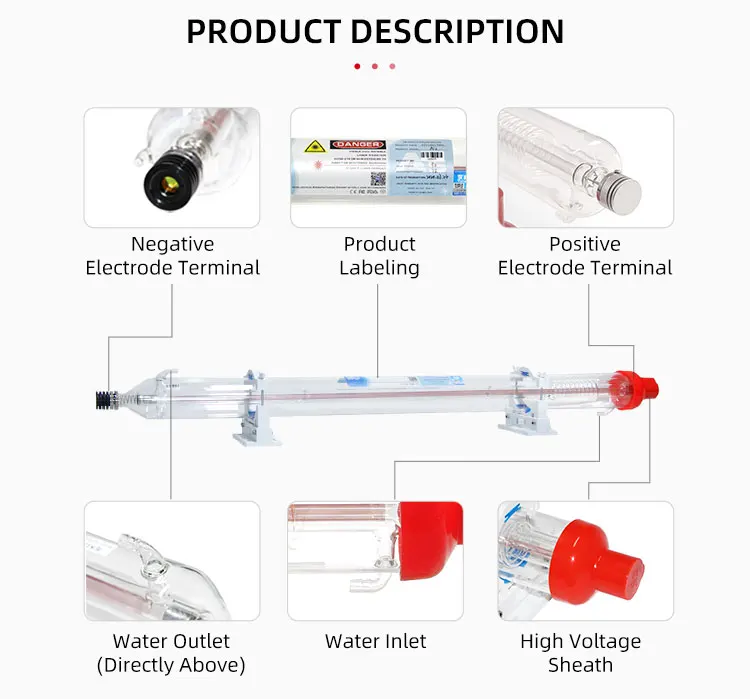

Product Description

Extended Protection Tube: recommended for cutting multi layer plywood, PVC materials. Avoid dust contaminating or temperature increasing.

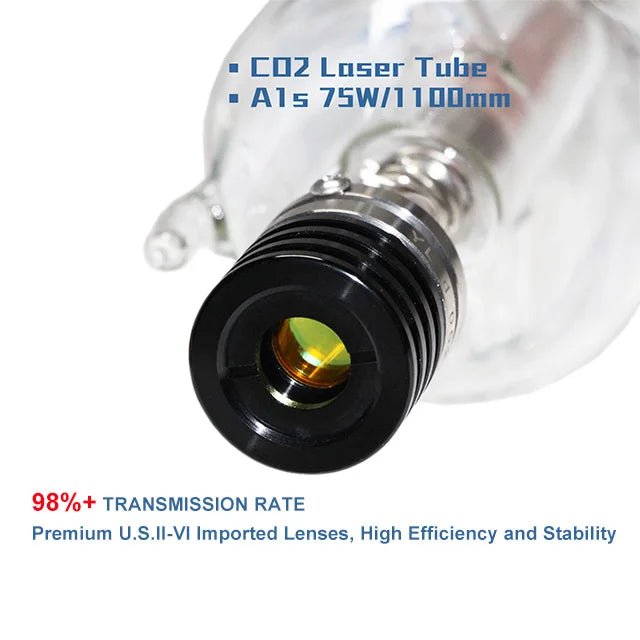

AMERICAN II-VI INFRARED LENS:Provides <0.1% Power Attenuation and Stable Output

Nano Gold Coating Technology: enhances the co2 laser tubes power and improves its service life time, cutting speed, quality of laser beam.

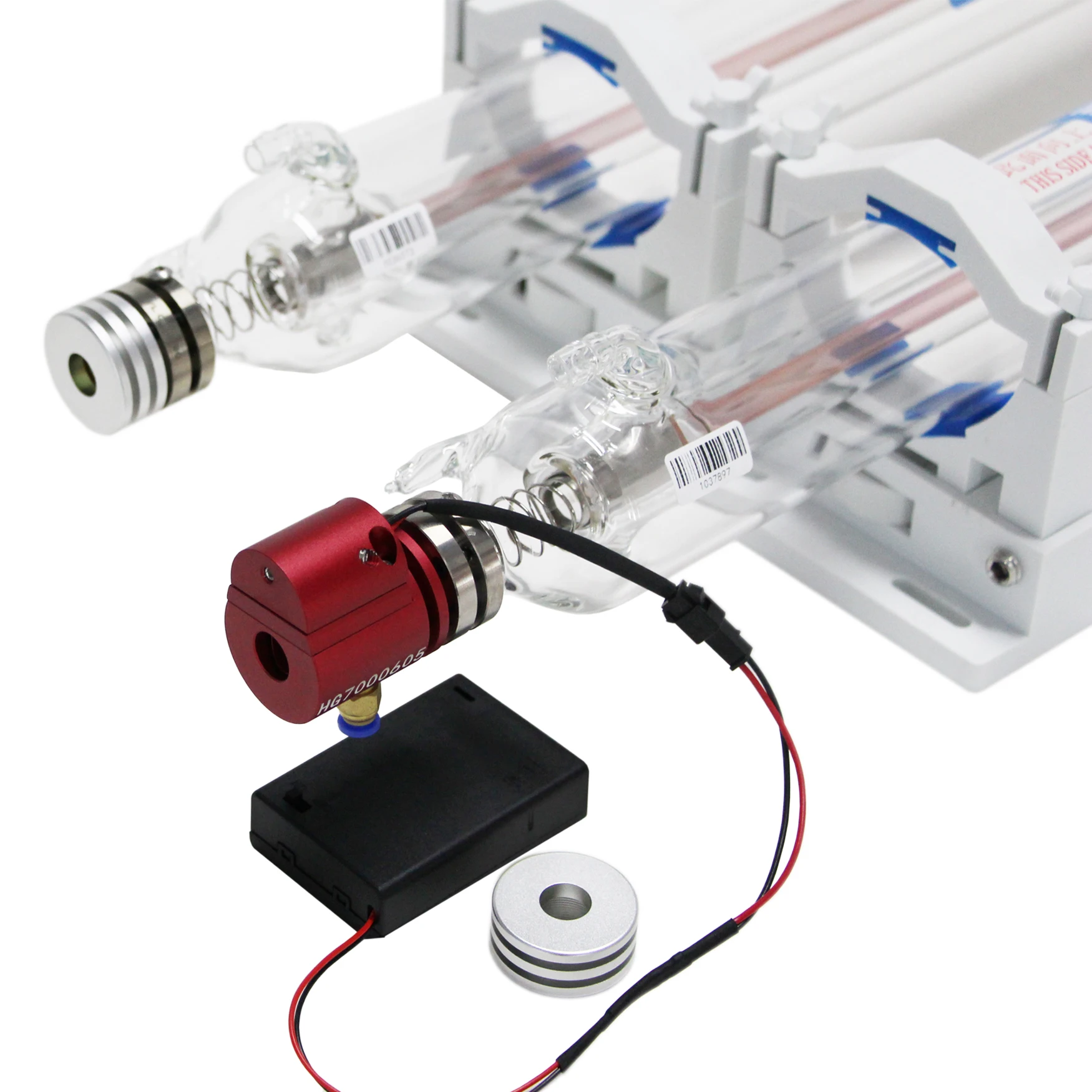

Red Dot Laser Pointer: could work on YongLi As/H series Co2 laser tube, allows easy mirror alignment. No more taping your mirrors.

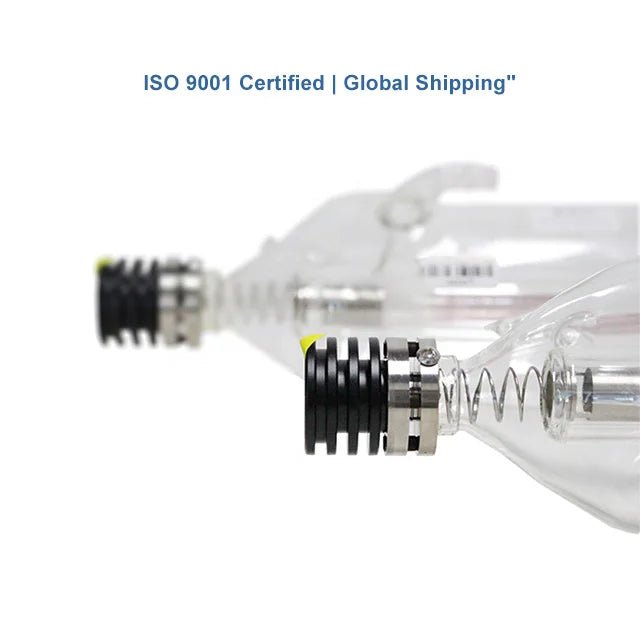

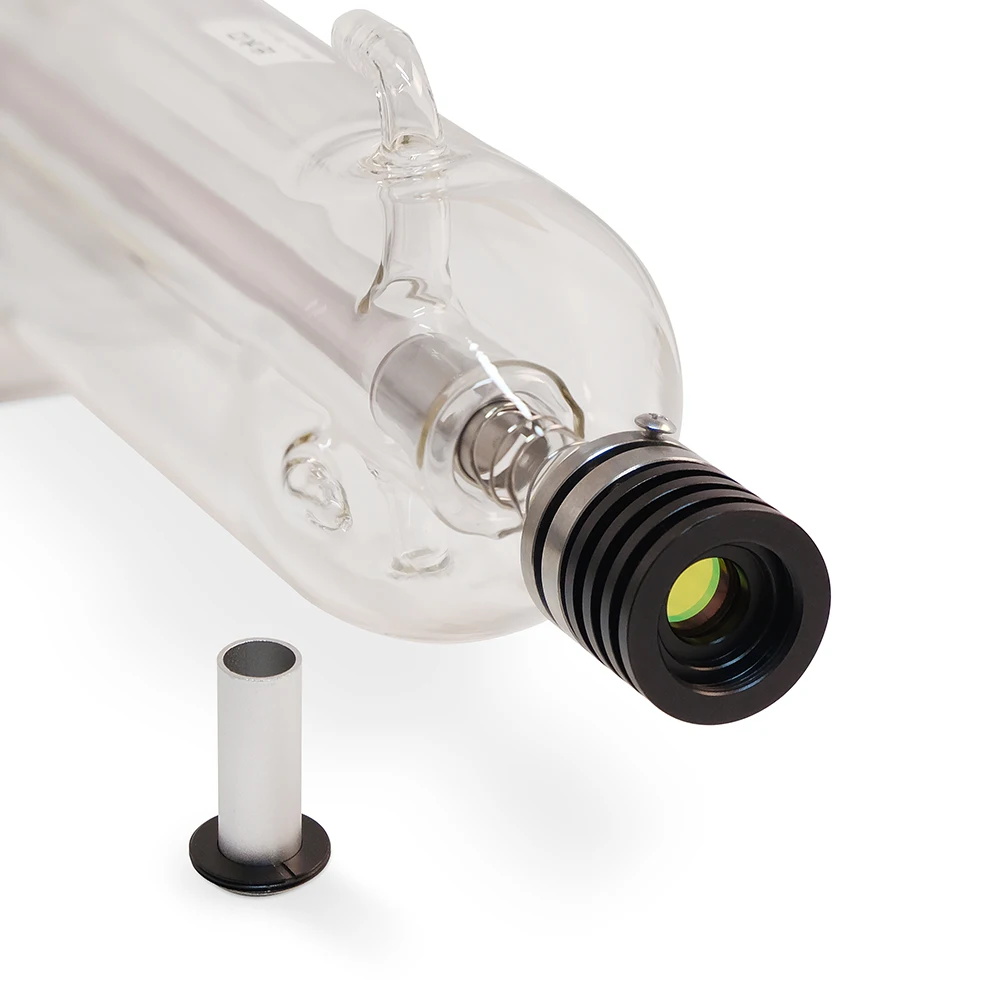

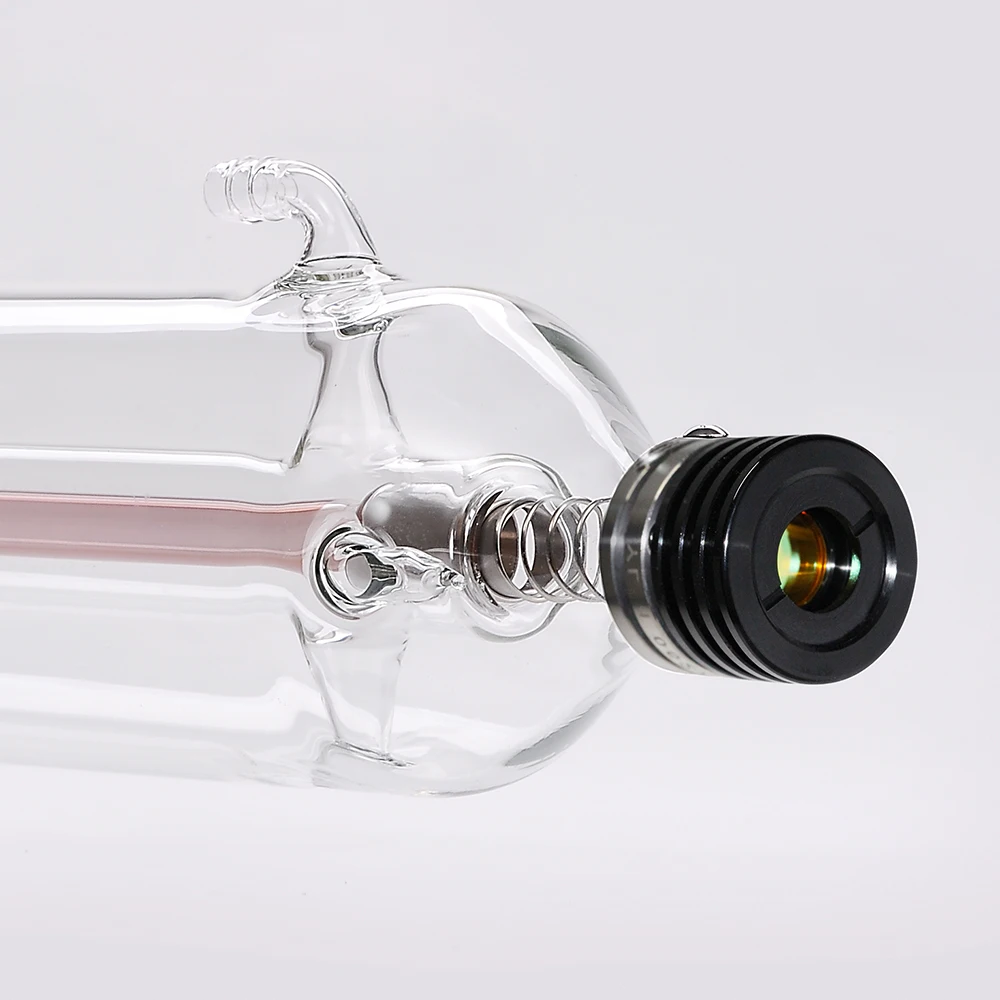

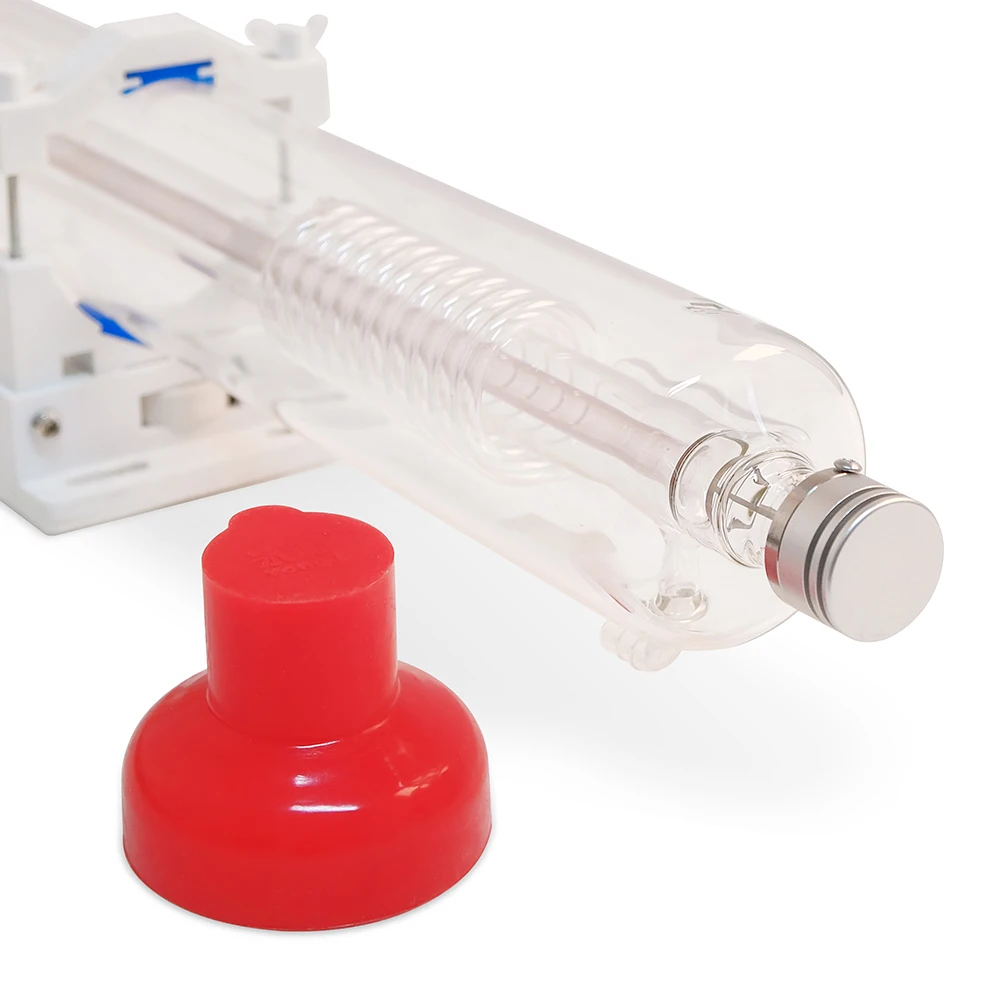

Positive Electrode Terminal:Full Metal head structure, special heat dissipation process to greatly reduce lens operating temperature.

High Voltage Sheath:Seal the High pressure sheath with plastic wrap to prevent dust from entering and causing wet ignition.

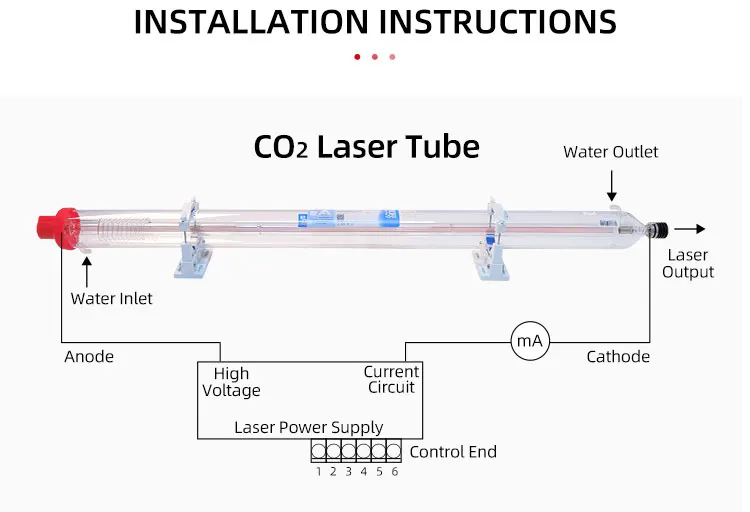

EASY TO INSTALL:Unlike other models that require troublesome and time-consuming threading of the wires into the tube,ours install easily.Just wind the power cord onto the external screw and tighten,capping the anode.It installs quickly and easily:then hook your water cooling system to the pipe fittings at either end. SAFE AND SOUND:The inner tube for the engraving laser beam is surrounded by built-in water tubing and a hermetically sealed outer tube to keep it cool and high functioning.Ports at either end allow easy connection with your water pump or industrial water chiller,and a protective cap shields the high-voltage anode from any shorts or arcing.

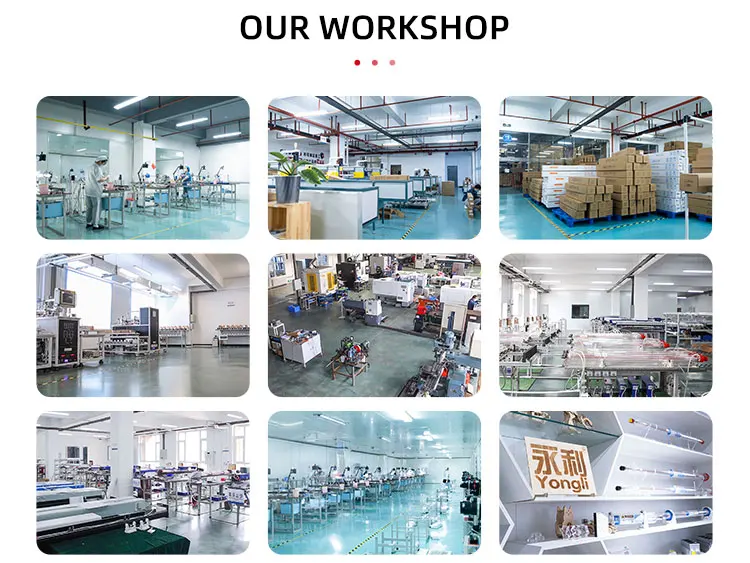

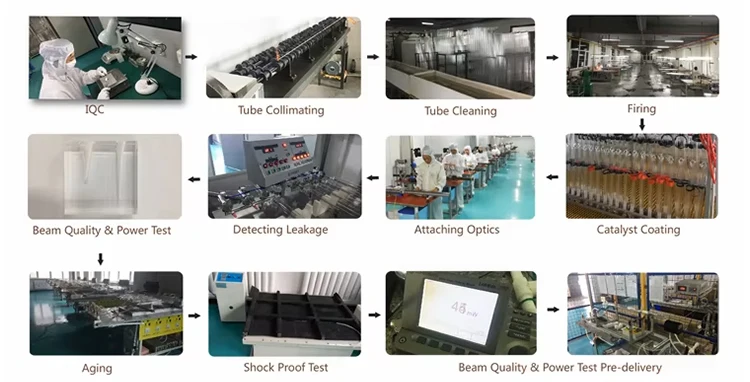

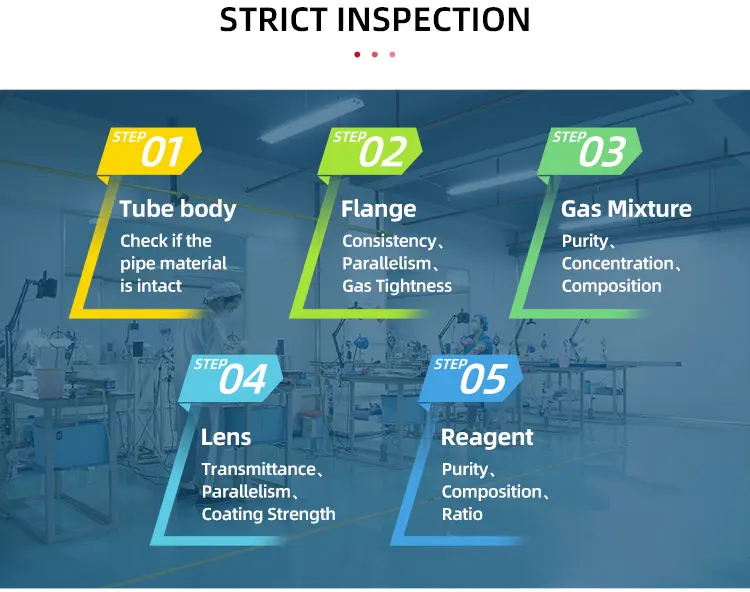

Each laser tube was produced under strict quality control system: * R&D center developed advanced specification according to customer's requirement * Raw material(Glass raw material, gas, optics and so on) are tested strictly * The production process is strictly complete under ISO9001:2015. * 10,000 square meters ultra clean working space ensures the co2 laser tube quality * Each co2 laser tube will be tested for 3 time before delivery

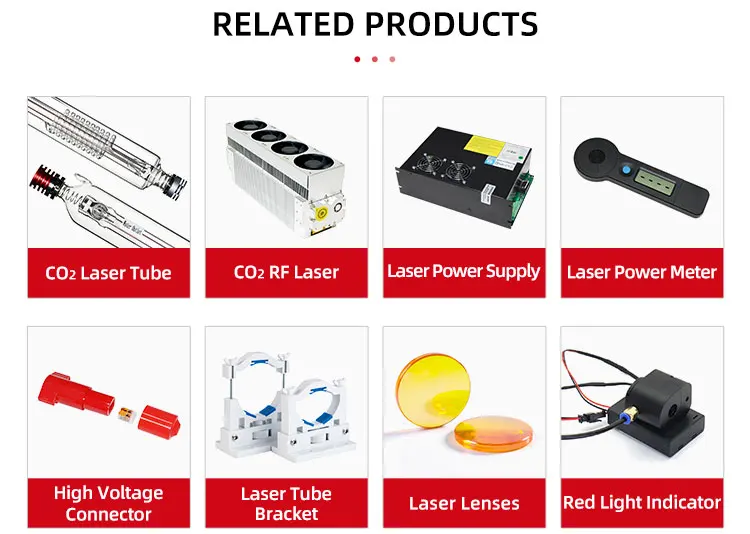

Related Products

Packing & Shipping

Trusted Packing&Shipping

Our laser tube is carefully packed and tightly protected during shipment. If there's any flaw in the product, just tell us with a photo and following confirmation we will get a new tube to you ASAP. ♦ Packing: Standard export packing, or customized packing as your request. ♦ Shipping: All products must be 100% tested to ensure their functionality, reliability, security and durability before shipment. ♦ Professional transport company /shipping forwarder.

Certifications

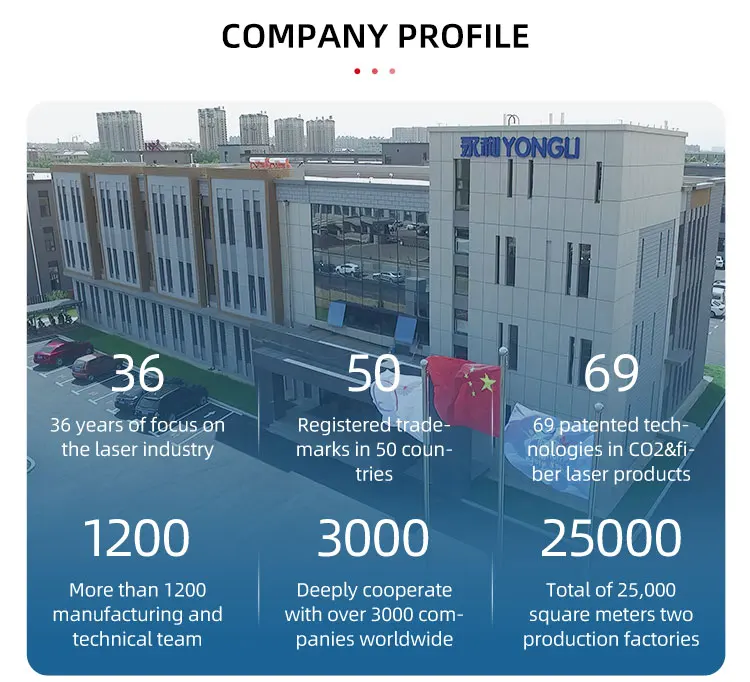

Company Profile

YONGLI Laser: Your Global Partner in Precision Laser Solutions​

YONGLI Laser is the TOP3 laser manufacture in China Laser Industry. Providing Co2 laser tubes, Fiber laser modules, laser machines and other laser parts.Ultimate Laser Solotions of High and Low Power 40w to 3000w, Accessories Consumables and Replacement parts for OEM's and R&D available in large and small quantities at the very lowest prices. Custom Services available are: Partnering Sales and Service, 24 Hours' Phone, email and on-site support and consulting, R&D, design work, & manufacturing of your product. YongLi Laser Tech laser was awarded the “2018 China Industrial Laser Innovation Contribution Award” at the “LMN Awards 2018 China Laser Industry Contribution Award”

FAQ

Q: How would I know this tube compatible with my machine? A: We suggest to refer the Accessories List of your machine first,to confirm the DIAMETER,LENGTH and POWER of the tube.Size fits,compatible.Our Professional technicians are waiting to answer all your questions!Just talk to us!

Q: How does the product come packaged? A: Tightly embrace the laser tube with high-density sponge.Double foam rubber,Double boxed.We keep improving our packaging, listening patiently to the feedback form our customers.If there any problem caused by transport,we will be responsible for it.

Q: Storage? A: Laser tube is consumable,which means that a long-time storage may lead to power attenuation.Thus,we recommend to buy it when need it.After receive the tube,test it first.If there any problem,let us know in time,we will provide 3 months after-sales services for free.

Q: How to insulate the high-voltage end? A: 1)After putting on the silicone tube, pour some glues inside. 2) Wrap a few more turns with electrical tape.

Q: Beam does not exit Tube? A: It may because of some incorrect operating of the laser machine.Feel free to let us know, and get some professional support.

Q: Why choose Yongli Laser Tube? A: We have more than 30 years of solid experience in laser industry, and we are the earliest seller of CO2 Laser Tube.Over the years,we keep improving our product quality, as well as its function,according to customer’s feedback.Our goal is to create value for our customers and always be responsible for the products we sell.We are your trusted partner for laser accessories.
